PRODUCT DATA SHEET: HWK-2000 Woven

PRODUCT DESCRIPTION:

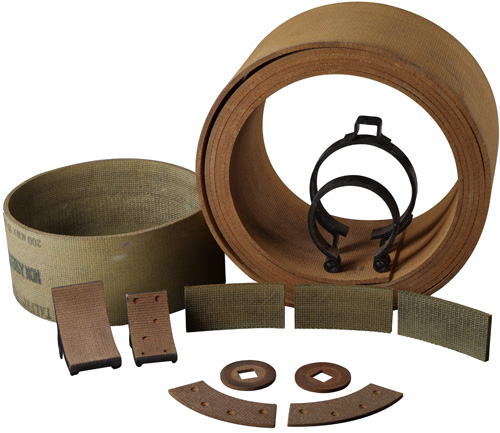

HWK-2000 is a heavy duty composite woven from yarns containing brass wire. This dense, tough material exhibits exceptional resistance to heat and compression under load. HWK-2000 has excellent fade and recovery stability.

APPLICATION:

HWK-2000 is suitable for light to heavy duty service with steel and cast iron mating surfaces. It is also suitable for light to medium duty operation in oil. Applications include winches, cranes, hoists, and other heavy duty industrial applications.

PHYSICAL PROPERTIES:

Width-                      UP to 13”
Thickness-              .187”- 1.000 ”
Length-                    25 ft rolls

FRICTION PROPERTIES:

Coefficient of Friction:


Normal                      .53
Hot                            .53
@ 400 F.                   .56
Static                        .56

Friction Code:

GG

Recommended Operating Limits:

Max. Pressure, psi                                           250
Max. Rubbing Speed, ft/min                           4000
Temperature Max. F., intermittent                 550
Temperature Max. F., continuous                   500

COEFFICIENT OF FRICTION from SAE J661 test procedure

Wear Phase Second Fade
